Span Processor

The OpenTelemetry component that intercepts spans at the start and end of their lifecycle — how BatchSpanProcessor and SimpleSpanProcessor differ, and how to tune them.

A span processor sits between your code and the Exporter. It intercepts spans at two key lifecycle points and decides what to do with them before they leave the process — filter, enrich, batch, or export immediately.

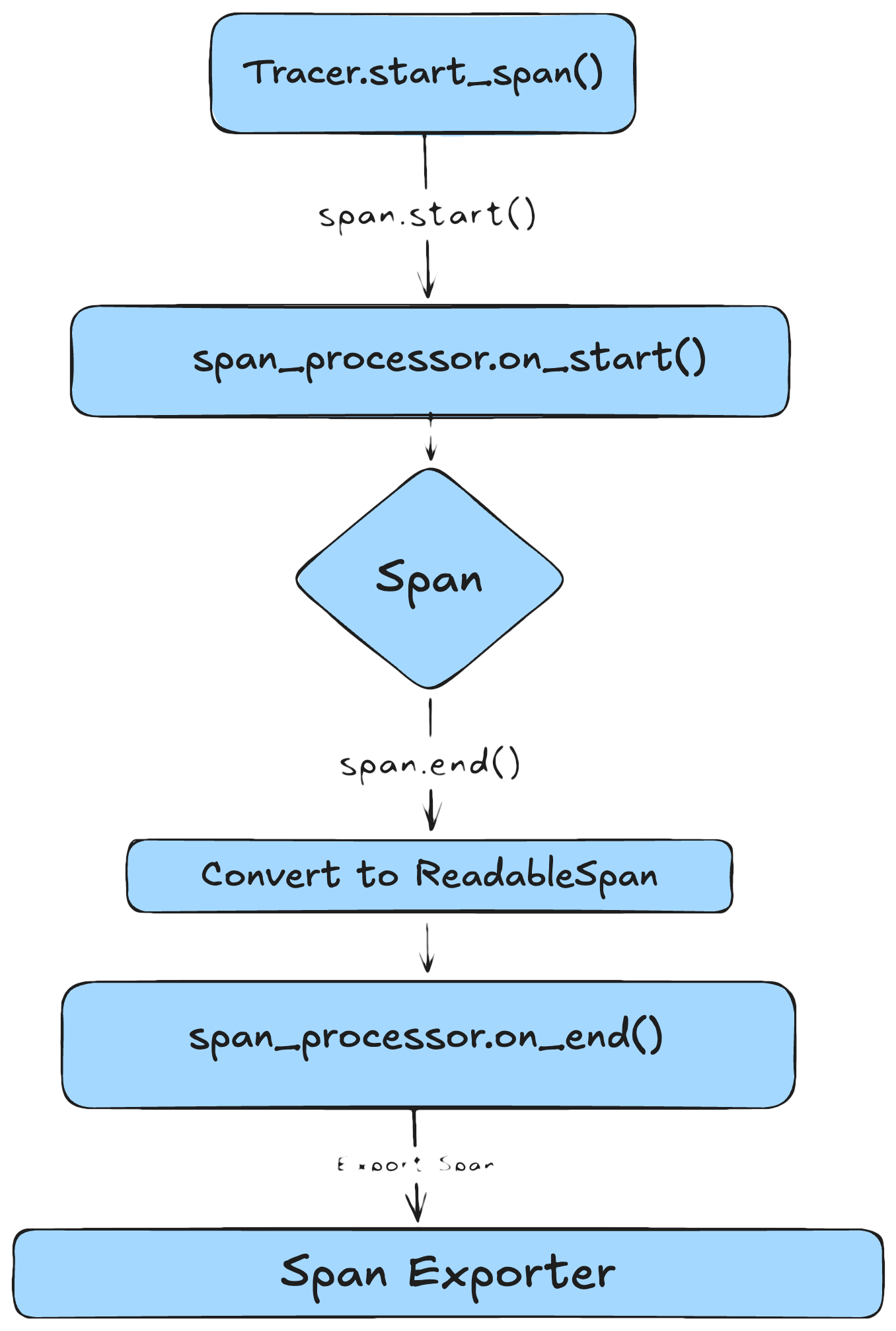

The Two Lifecycle Hooks

Every span processor implements two methods:

Hook	When it fires	Span state	Common uses
on_start(span, parent_context)	Right after the span is created.	Mutable. Attributes may not be set yet.	Add context-scoped attributes (session ID, user ID, request ID).
on_end(span)	After span.end() is called.	Passed in as a ReadableSpan — intended to be immutable.	Filter, enrich, or modify attributes; forward to the exporter.

A new processor method, on_ending, is in development. It fires before on_end and gives you a mutable span — useful for modifying attributes at the last moment without the workarounds described below.

Modifying Attributes in on_end

The ReadableSpan passed to on_end is intended to be immutable, but language implementations vary:

• Python — nothing is truly immutable. Attributes and context can be edited directly.
• TypeScript — ReadableSpan properties are readonly, so the object can’t be reassigned, but properties can be mutated in place.

Editing a ReadableSpan in place can have unintended side effects. If multiple span processors are attached to the Tracer Provider, every downstream processor sees the modification. If you need to modify a span, prefer copying it with the edited attributes rather than mutating the original.

Configuring a Span Processor

The most common processor for production is BatchSpanProcessor, which queues spans and exports them in batches:

from opentelemetry.exporter.otlp.proto.http.trace_exporter import OTLPSpanExporter
from opentelemetry.sdk.trace.export import BatchSpanProcessor

otlp_exporter = OTLPSpanExporter(...)

span_processor = BatchSpanProcessor(
    span_exporter=otlp_exporter,
    max_queue_size=2048,            # env: OTEL_BSP_MAX_QUEUE_SIZE
    schedule_delay_millis=5000,     # env: OTEL_BSP_SCHEDULE_DELAY
    max_export_batch_size=512,      # env: OTEL_BSP_MAX_EXPORT_BATCH_SIZE
    export_timeout_millis=30000,    # env: OTEL_BSP_EXPORT_TIMEOUT
)

Each parameter has a matching environment variable, so you can leave the code unchanged and tune at deploy time. See the BatchSpanProcessor API reference for current defaults.

BatchSpanProcessor vs SimpleSpanProcessor

OpenTelemetry ships two built-in processors. The difference is fundamental — when each span leaves your process.

Property	BatchSpanProcessor	SimpleSpanProcessor
Best for	Production and staging	Local debugging, demos, CI
Export behavior	Async, in batches	Each span immediately (sync)
Impact on latency	Low — work done off the request path	Higher — export blocks the request
Throughput	High, optimized for volume	Low, can bottleneck under load
Reliability on exit	Requires force_flush() / shutdown()	Spans exported immediately
Visibility speed	Slight delay (buffering)	Immediate
Failure surfacing	Export failures logged in background	Failures raised inline
Tuning	Configurable (batch size, delay, timeouts)	Minimal

SimpleSpanProcessor is synchronous and blocking. It exports each span before your code continues, which adds latency to every traced operation. Use BatchSpanProcessor for production.

Common Pitfalls

A few span-processor failure modes worth knowing about:

• Using SimpleSpanProcessor in production — exports every span synchronously. Under load, this adds latency to every traced operation.
• export_timeout_millis too short — in Python, export failures trigger exponential backoff up to 32 seconds. During that backoff, no other batches can export, the queue fills up, and spans get dropped. Set the timeout high enough that transient slowdowns don’t trigger retries.
• max_queue_size, max_export_batch_size, or schedule_delay_millis too high — spans accumulate in memory, creating memory pressure. Big batches may also exceed the backend’s per-request size limit (see the >4 MB gRPC pitfall on the Exporter page).
• Forgetting that processors run in order — multiple processors execute in the order they were added. If one mutates a ReadableSpan in on_end, every later processor sees the mutation.

Where Span Processor Fits in the Pipeline

The processor is the middle stage of the export pipeline. Spans flow:

Your code → Tracer → Span Processor → Exporter → Arize AX

The processor is owned by the Tracer Provider. You can attach multiple processors — each one independently decides whether and when to forward spans to its exporter.

---

Next step

The span processor decides when spans leave. The Tracer Provider holds it all together:

Next: Tracer Provider and Tracer
